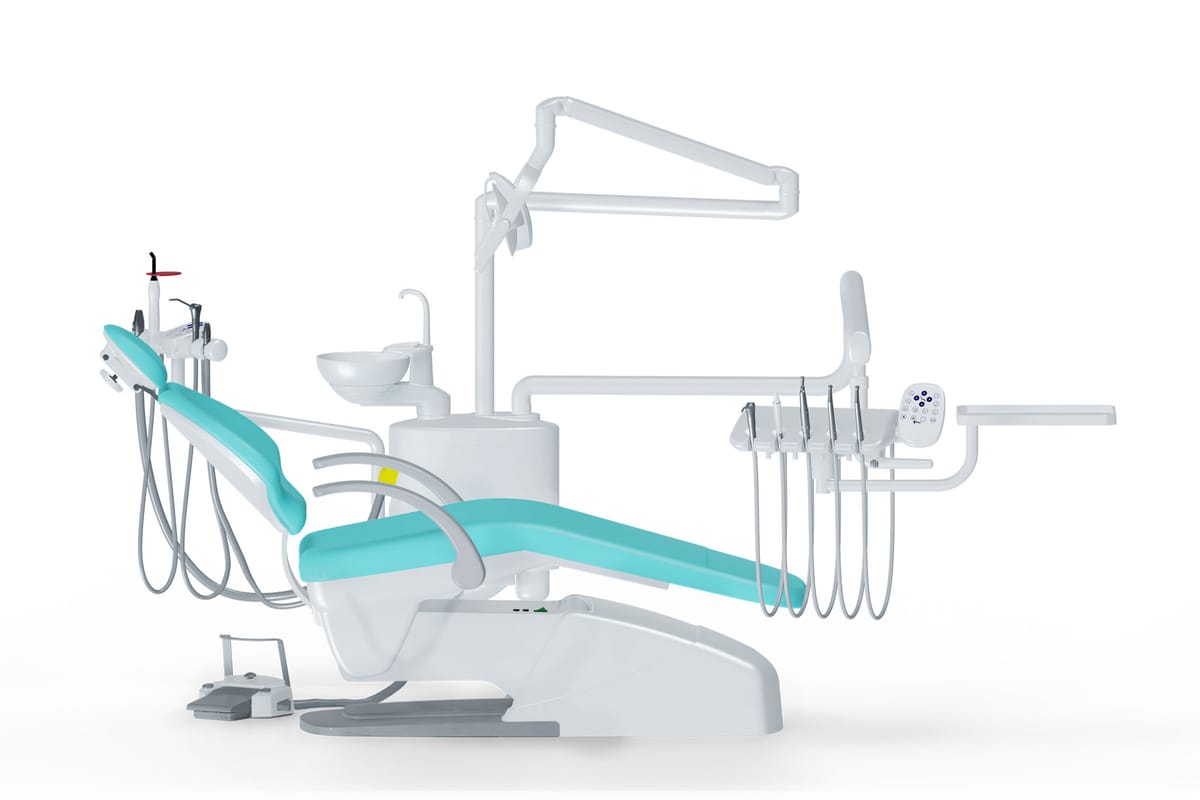

Ultimate Comfort Smart Pneumatic

Ultimate Comfort Smart Pneumatic – ergonomic pneumatic dental unit

A smart solution, day after day. An excellent workflow.

Patient Chair – Comfort Smart

The patient chair is electrically driven. An ergonomic chair height guarantees easy access. The water unit has a self-contained clean water system. The multifunctional foot pedal control system is easy to use and supports an excellent workflow.

The unit has a memory-system:

• spittoon position
• last position
• light off / light on
• instrument water on/off

The Ultimate Comfort Smart Pneumatic is outstanding ergonomic and efficient for the daily use.

Patient Chair Features

• Electric chair movement for fast and quiet movements
• Ergonomic design for comfortable seating also during long treatments
• Optimal legroom for the dentist
• High-quality synthetic leather upholstery
• Auto return function: If the safety switch is activated, the chair automatically moves up for a few cm/inch
• Safety switch
• Fixed left and movable right armrest
• Double jointed headrest

Your patient chair can be adjusted optionally for all treatment scenarios between a lowest position of 400 mm and a highest position of 800 mm. (distance between upholstery and floor)

Dentist Element

Easy handling and efficient treatments: According to the personal preference, two different versions are available, which allow an easy adjustment of the instruments. The instruments are controlled pneumatically.

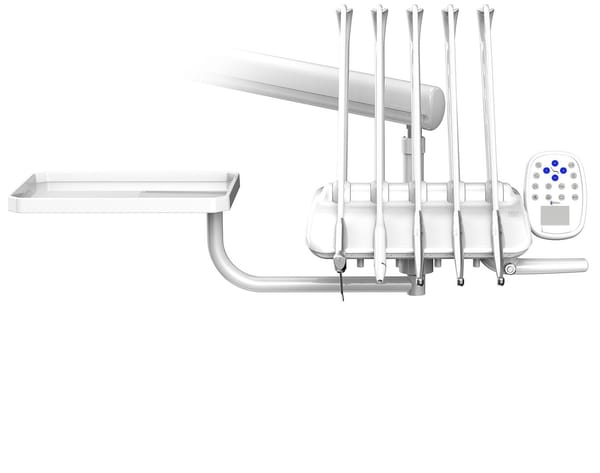

S-Version – swinging hoses

• Tray support is available in standard version and with a lower tray
• Pneumatic arm brake
• Up to 5 instruments
• Available in electric / pneumatic version

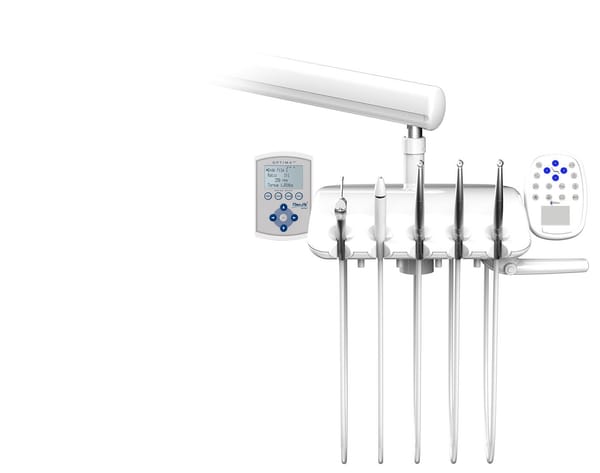

S-Version Optima – swinging hoses with Bien Air Optima

• Pneumatic arm brake
• Up to 5 instruments
• Available in electric / pneumatic version

S-Version iOptima – swinging hoses with Bien Air iOptima

• Pneumatic arm brake
• Up to 5 instruments
• Available in electric / pneumatic version

S-Version + Traytable

• Traytable available

H-Version – hanging hoses

• Tray support is available in standard version and with a lower tray
• Pneumatic arm brake
• Up to 5 instruments

H-Version Optima – hanging hoses with Bien Air Optima

• Pneumatic arm brake
• Up to 5 instruments

H-Version iOptima – hanging hoses with Bien Air iOptima

• Pneumatic arm brake
• Up to 5 instruments

H-Version + Traytable

• Traytable available

Control Panel

• Control panel with X-ray image viewer
• 5 programmable chair positions including flush position, exit position and emergency position
• Removable silicone base for easy cleaning and disinfection (S-Version)

Assistant Element

• Integrated touch panel
• Up to 4 instruments
• Large and small suction hose
• 3F-Syringe
• Polymerization light
• Double-articulated and adjustable arm movement

Operating Lights

EVA LED with switch / sensor

• Illuminance: 50,000 lux
• Color temperatures: 5,700, 5,000, 4,000 or 2,700 Kelvin
• CRI >95, for improved color and light perception
• The light field is 19×10 cm at a distance of 70 cm
• Optional protective cover with patient mirror
• Indicator light – visual feedback of illuminance and color temperature

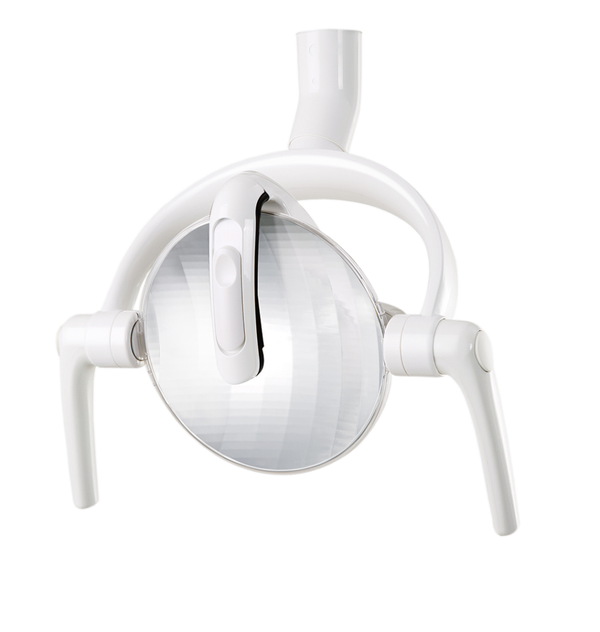

MAIA with sensor

• Illuminance: 3,000-45,000 lux
• Constant color temperature of 5,000 Kelvin
• Shadow-free illumination
• Removable, sterilizable handles
• Constant color intensity

V2 LED operating light

• Illuminance: 8,000 to 30,000 lux
• Yellow filter
• Sensor switch – light on/off by hand movement
• Low heat emission
• Precise illumination of the work area

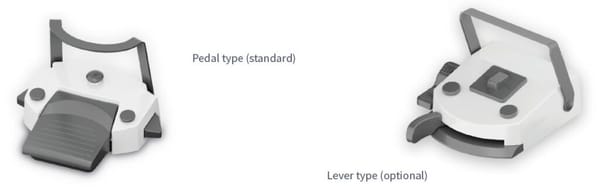

Foot Controller

Modern Design for Chair Movement and Instruments

• Large foot handle for easy repositioning
• Manual control of chair movements

Program Control of Chair Movements

• Spitting position/last treatment position
• Programmable chair position: A, B, Emergency
• Entry/exit position

Control of the Instruments

• Speed/power control for the active instrument
• Spray water on/off mode for instruments

Buttons

• Spray water at instrument
• Chip blower function

Dental Stools

MobiloFlex 60 / MobiloFlex 60 with footring

• Backrest with fixed position or dynamic movement
• Ergonomic and comfortable seat
• Symmetrical backrest
• Gas pressure cylinder
• Chrome-plated base
• Five double castors for stability
• Color-coordinated upholstery

Equipment and Options

Patient Chair

• Synchronized
• Left/right-handed version, 30° chair movement
• Standard: Movable right armrest
• Option: Movable left and right armrest
• Standard: Double-jointed headrest
• Standard: Multifunctional foot control with pedal

Dentist Element

• Standard: X-ray image viewer
• Standard: 3 F.O. without light (Midwest)
• Standard: 1x 3F-Syringe
• Option: Luzzani Minilight
• Standard: Double tray support
• Option: Bien-Air Micromotor MCX LED & MX2
• Option: Bien-Air OptimaINT with Micromotor MCX LED or MX2 (Endo)
• Option: Bien-Air IOptimaINT with Micromotor MX2 (Endo)

Assistant Element

• Standard: Adjustable assistant arm
• Standard: Control panel
• Standard: 1x 3F syringe
• Option: Luzzani Minilight
• Standard: Small and large suction hoses
• Option: Ritter ProCure Curing Light LED
• Option: Scaler Ritter E and S LED
• Option: Scaler ACTEON SP NEWTRON

Water Unit

• Standard: Mounted on the chair
• Standard: Venturi system (air/water)
• Standard: Movable cuspidor bowl
• Standard: Heating for cup filler
• Standard: Ceramic spittoon with automatic cup filler and bowl rinsing
• Standard: Water bottle system
• Option: External wet suction
• Option: External dry extraction with CS1
• Option: Cuspidor valve for wet suction
• Option: Automatic air-water input group

Operating Lights

• Option: LED dental light MAIA with sensor
• Option: LED dental light Ritter Standard
• Option: EVA LED with switch

Stools

• Option: MobiloFlex 60
