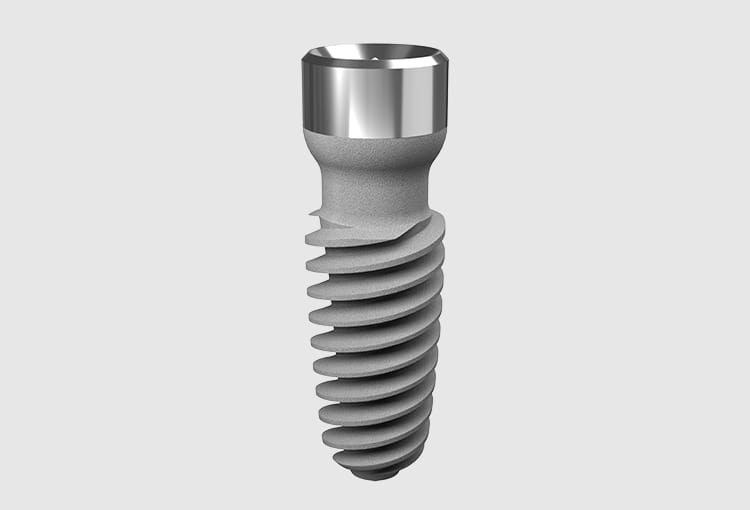

I9 I-LOAD

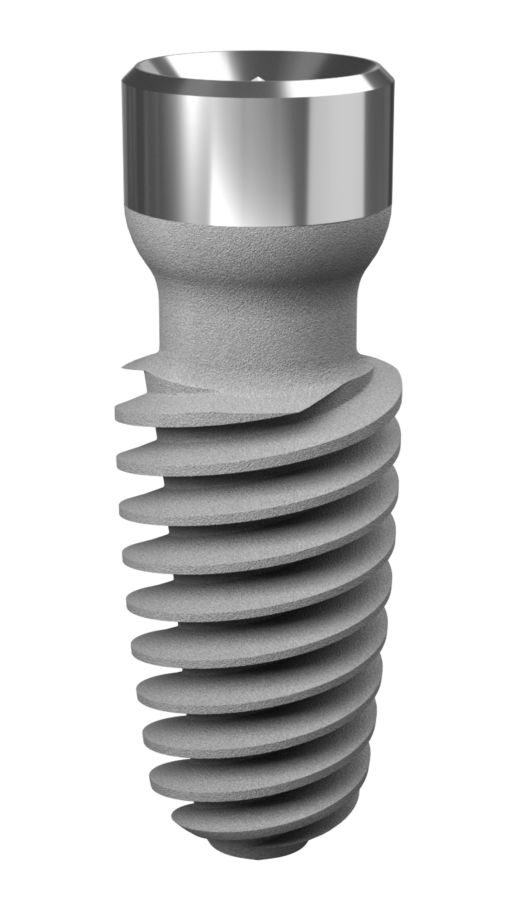

I9 I-Load For the Cortical bone

• Designed for implantation in the cortical / basal bone
• High primary stability, suitable for immediate loading and immediate implantation in extraction sites
• Smooth machined coronal part, to help prevent perio-pathogen adhesion at the gingival area, thus eliminating gingival inflammation

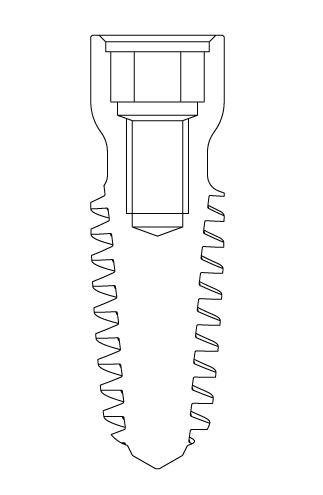

• Tapered core and tapered threads
• Deep sharp threads with a large cutting surface area
• Self-tapping
• All AB Dental implants undergo special calcium-phosphate sandblasting and thermal and acid etching treatments for surface roughening

Implant range and protocol

∅ 4.0

Lengths: 10, 11.5, 13, 16, 18, 20

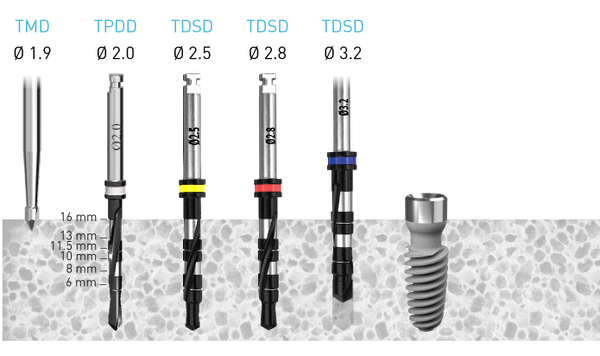

Final Drill Protocol:

• Drill speed (RPM): 400-700
• Drill diameter (mm): 3.2

∅ 5.0

Lengths: 10, 11.5, 13, 16

Final Drill Protocol:

• Drill speed (RPM): 400-700
• Drill diameter (mm): 3.2

∅ 6.0

Lengths: 10, 11.5, 13, 16

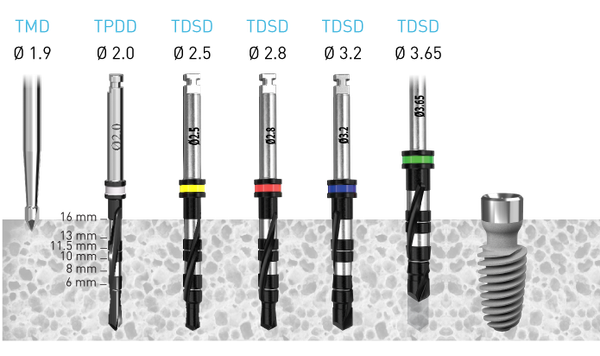

Final Drill Protocol:

• Drill speed (RPM): 400-600
• Drill diameter (mm): 3.65

All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

Optional drills

Final drills for cortical dense bone as required (type 1-2)

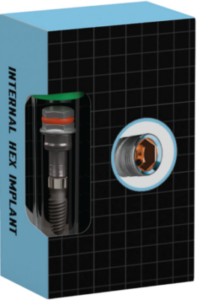

Package Content

Components, inside tube, outside tube, and package documentation included as per product specifications.
