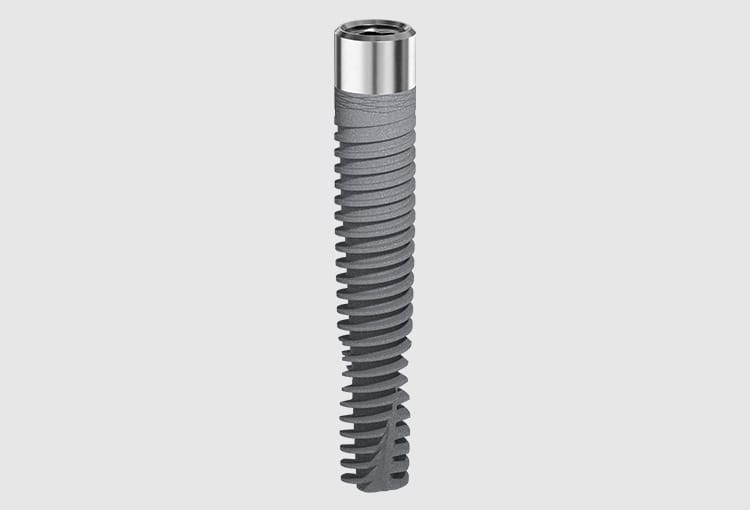

I8 I-Long Long implant

I8 LONG implant

A long implant, intended for full-mouth rehabilitation in cases of insufficient bone volume in the upper jaw, where a long implant is required.

• Available in lengths of 18-25 mm Diameters of 3.75 and 4.2 mm
• Smooth machined coronal 3 mm reduces bacterial adherence in the gingival area
• Allows immediate loading and rehabilitation
• Fits the pterygoid bone
• Shortens the treatment period, by saving the recovery time required for bone graft or sinus lift
• Double threads and double flutes
• Round apex
• Self-tapping
• All AB Dental implants undergo special calcium-phosphate sandblasting and thermal and acid etching treatments for surface roughening

Technical details & Features

• Available in lengths of 18-25 mm Diameters of 3.75 and 4.2 mm
• Smooth machined coronal 3 mm reduces bacterial adherence in the gingival area
• Allows immediate loading and rehabilitation
• Fits the pterygoid bone
• Shortens the treatment period, by saving the recovery time required for bone graft or sinus lift
• Double threads and double flutes
• Round apex
• Self-tapping
• All AB Dental implants undergo special calcium-phosphate sandblasting and thermal and acid etching treatments for surface roughening

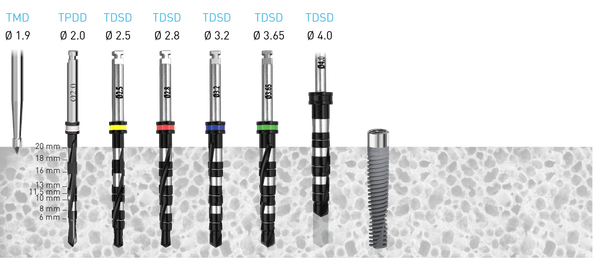

Implant range and protocol

∅ 3.75

• Lengths: 18, 20, 22, 25
• Final Drill Protocol
• Drill speed (RPM): 400-600
• Drill diameter (mm): 3.65

∅ 4.2

• Lengths: 18, 20, 22, 25
• Final Drill Protocol
• Drill speed (RPM): 400-600
• Drill diameter (mm): 4.0

All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

Optional drills

Final drills for cortical dense bone as required.

Package Content

COMPONENTS, INSIDE TUBE, OUTSIDE TUBE, PACKAGE included as shown in product images.
